Box Culvert

Box
Culvert Drain

A compact and lightweight drainage solution engineered for pedestrian areas and residential infrastructure. Combines the durability of precast concrete with the convenience of rapid, manual installation.
Download Brochure

Application

Such as storm water drains, power ducts and road.

LOOKS STRONG

To build strong and sustainable precast bridges, we designed them to comply with Indian loading conditions for Highways and Railways. We made it with high-performance self-compacting concrete as per Japanese Industrial manufacturing standards

LOADING CLASS 70 R, CLASS A, CLASS AA, INDIAN RAILWAY LOADING

HIGH-STRENGTH AND HIGH-PERFORMANCE PRECAST BOX CULVERT

TESTED FOR STRENGTH AND DURABILITY

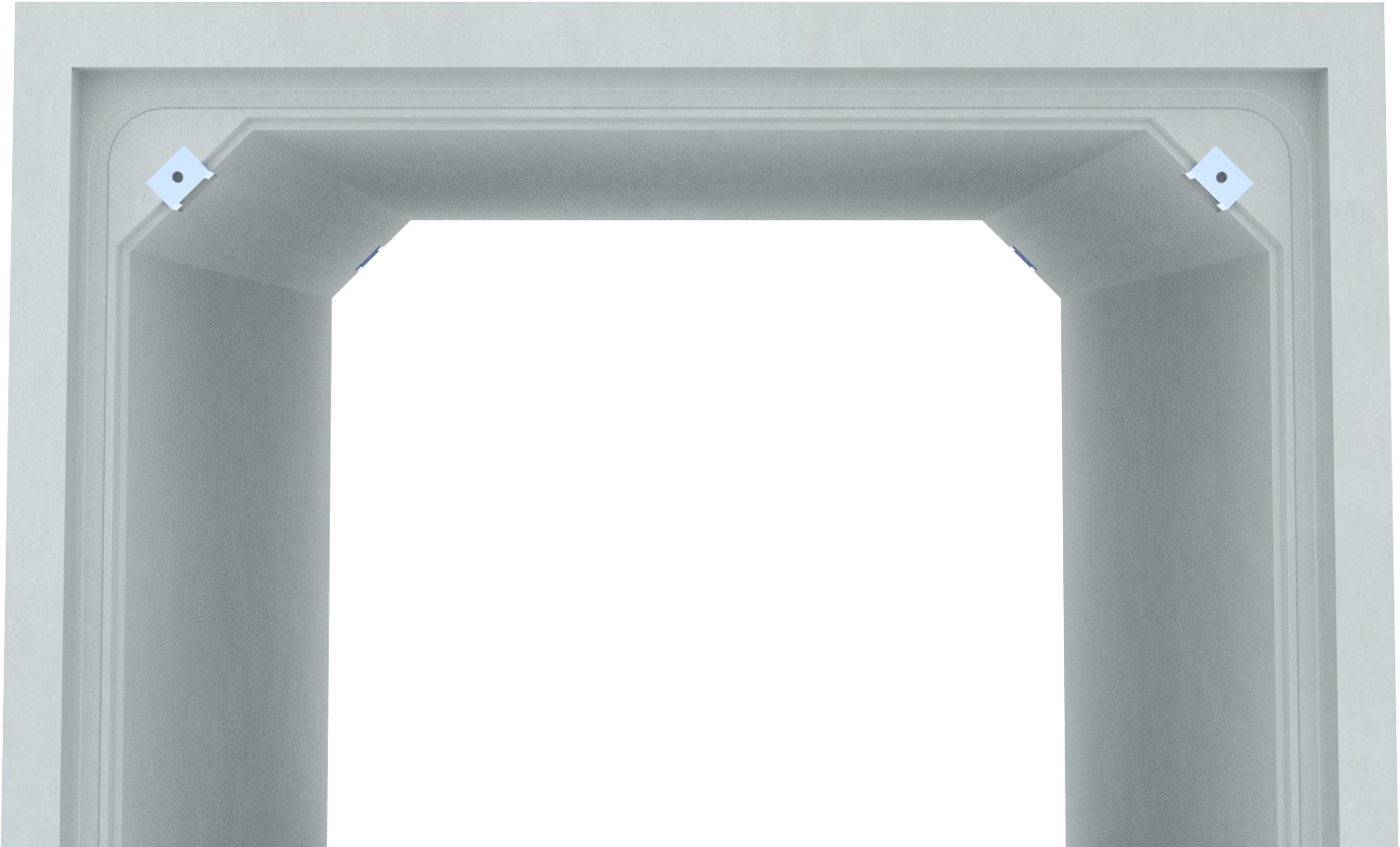

Front View

Side View

Product Specification

B X H (mm) B B1 H H1 L TS TW C d1 d2
300 x 300300416300475200095/8055C30 / R50--
500 x 50050068050074020001209050--
600 x 600600775600860200013080C50 / R80--
800 x 8008001060800106020001301301006060
600 x 10006008601000126020001301301506060
900 x 100090011601000126020001301301506060
1000 x 1000100012601000126020001301301506060
1200 x 1000120014601000126020001301301506060
1000 x 6001000126060086020001301301506060
800 x 140080010601400166020001301301506060
900 x 140090011601400166020001301301506060
1000 x 1400100012601400166020001301301506060
1200 x 1400120014601400166020001301301506060
1300 x 1400130015601400170020001501301506060
1500 x 1400150017601400170020001501301506060
1400 x 1000140016601000126020001301301506060
1400 x 1200140016601200146020001301301506060
2000 x 1200200023201200156020001801602008080
2000 x 1500200023201500186020001801602008080
2000 x 1800200023201800216020001801602008080
2000 x 2000200023202000236020001801602008080
2500 x 1500250029001500194015002202002008080
2500 x 1800250029001800224015002202002008080
2500 x 2000250029002000244015002202002008080
2500 x 2500250029002500294015002202002008080

LET’S PRECAST THE FUTURE.

To build strong and sustainable precast bridges, we designed them to comply with Indian loading conditions for Highways and Railways. We made it with high-performance self-compacting concrete as per Japanese Industrial manufacturing standards

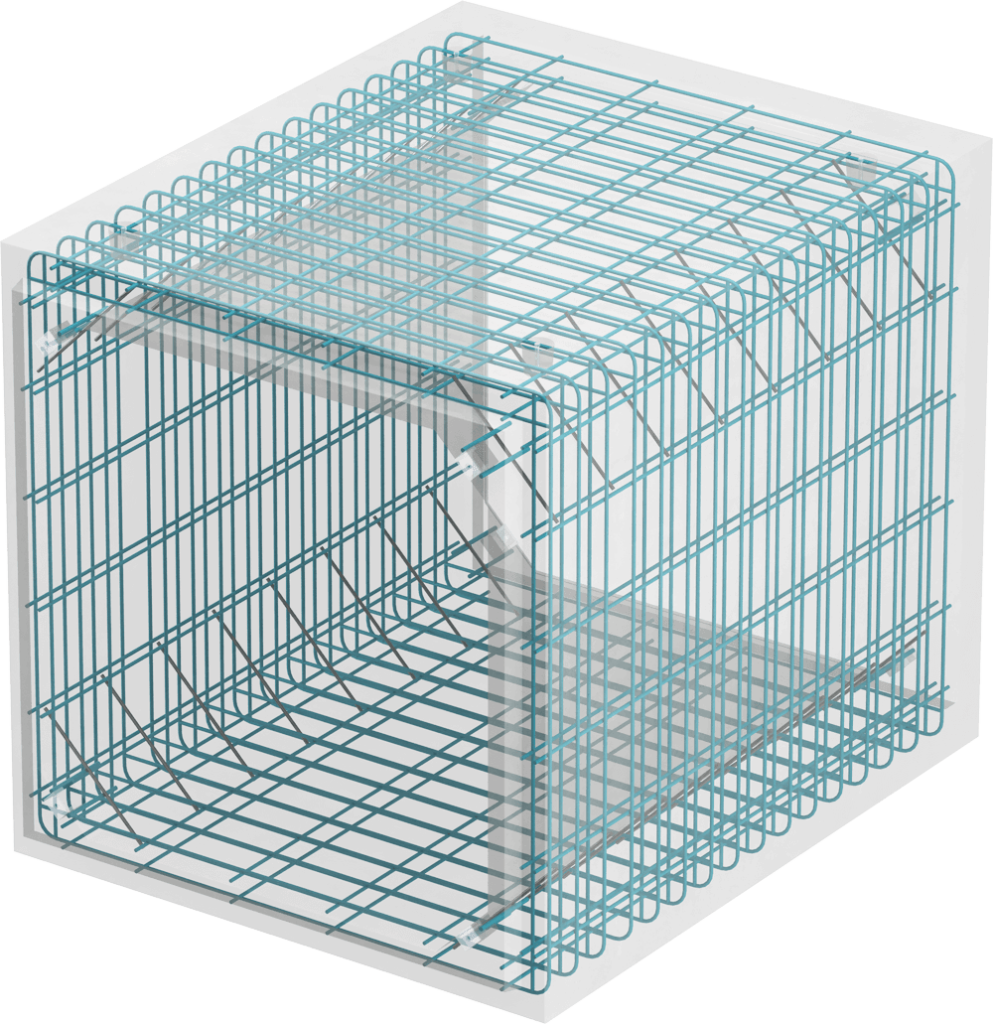

  • Reinforcement details as per precast design
  • Type of steel and grade of concrete (Fe500D/Fe550D)
  • Accurate in terms of cutting length, curvature and spacing of rebars
  • Use of CPCC and CRS steel for durability
