T6
U Shape Light
Duty Drain
Designed specifically for residential complexes, pathways, and landscaping, our Light-Duty U-Drains offer efficient
water management in non-traffic zones. These lightweight precast units ensure rapid handling and installation
while maintaining a high-quality, smooth concrete finish.
Application
Such as storm water drains and power and telecommunication cable ducts.
Section
Side View
Product Specification
| Size (mm) | Dimensions of U Shape Drain (mm) T-6 | ||||||
|---|---|---|---|---|---|---|---|
| a x c | L | A | H | a | c | d | e |
| 300 x 300 | 2000 | 440 | 370 | 300 | 300 | 70 | 70 |
| 450 x 450 | 2000 | 610 | 520 | 450 | 450 | 75 | 70 |
| 600 x 600 | 2000 | 730 | 685 | 600 | 600 | 85 | 85 |
| 750 x 750 | 2000 | 890 | 845 | 750 | 750 | 95 | 95 |
| 900 x 900 | 2000 | 1070 | 1015 | 900 | 900 | 115 | 115 |

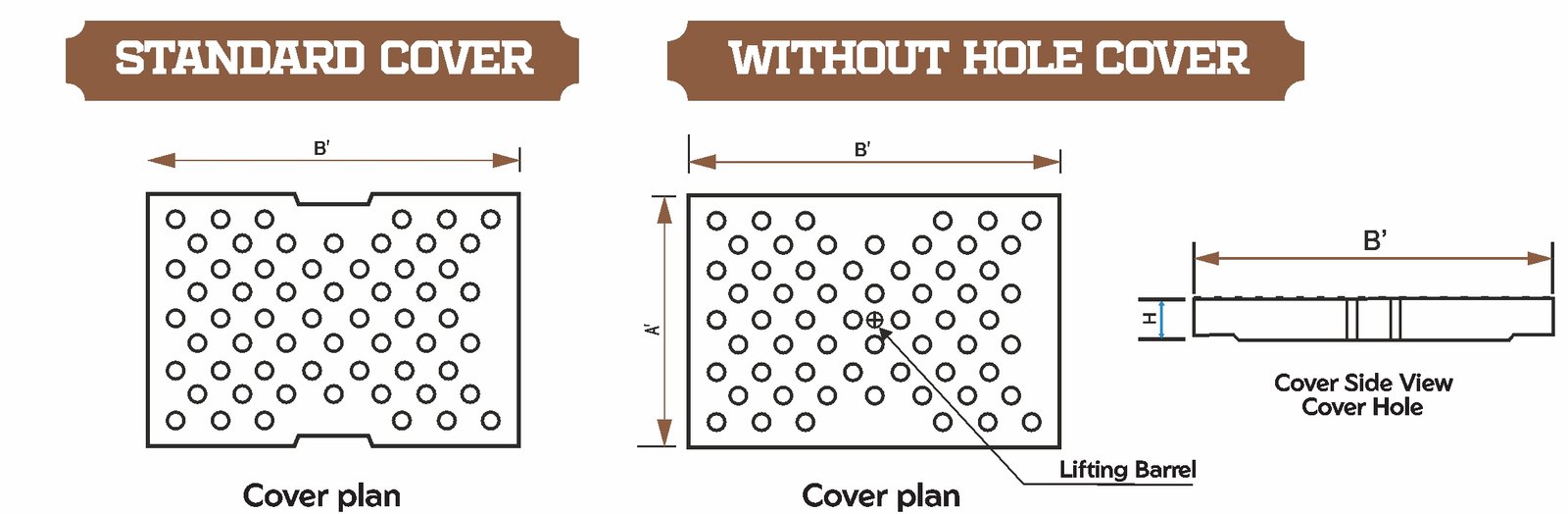

| Drain Size (mm) | Dimensions of Cover (mm) | ||
|---|---|---|---|
| A’ x B’ | A’ | B’ | H |
| 300 x 300 | 500 | 440 | 60 |
| 450 x 450 | 500 | 610 | 80 |
| 600 x 600 | 500 | 720 | 80 |
| 750 x 750 | 500 | 890 | 90 |
| 900 x 900 | 500 | 1060 | 100 |
