T25
U Shape Heavy
Duty Drain
Engineered For Superior Durability, Somnath Precast U-Drains Are Crafted From High-Strength Reinforced
Concrete To Deliver A Flawless, Non-Porous Finish. Fully Conforming To Is Quality Standards, These Units Are

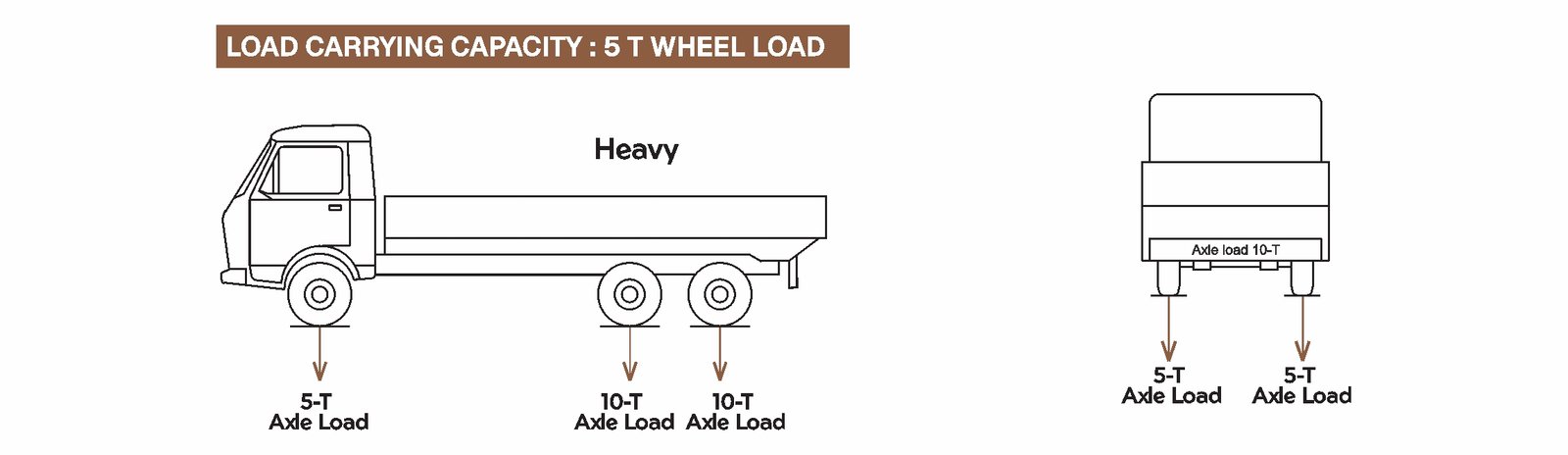

Designed To Handle Heavy-Duty Traffic Loads With Ease. They Provide The Ideal Infrastructure Solution For
Efficient Storm Water Drainage And Secure Underground Utility Ducting For Power And Telecom Sectors.
Application
Such as storm water drains and power and telecommunication cable ducts.

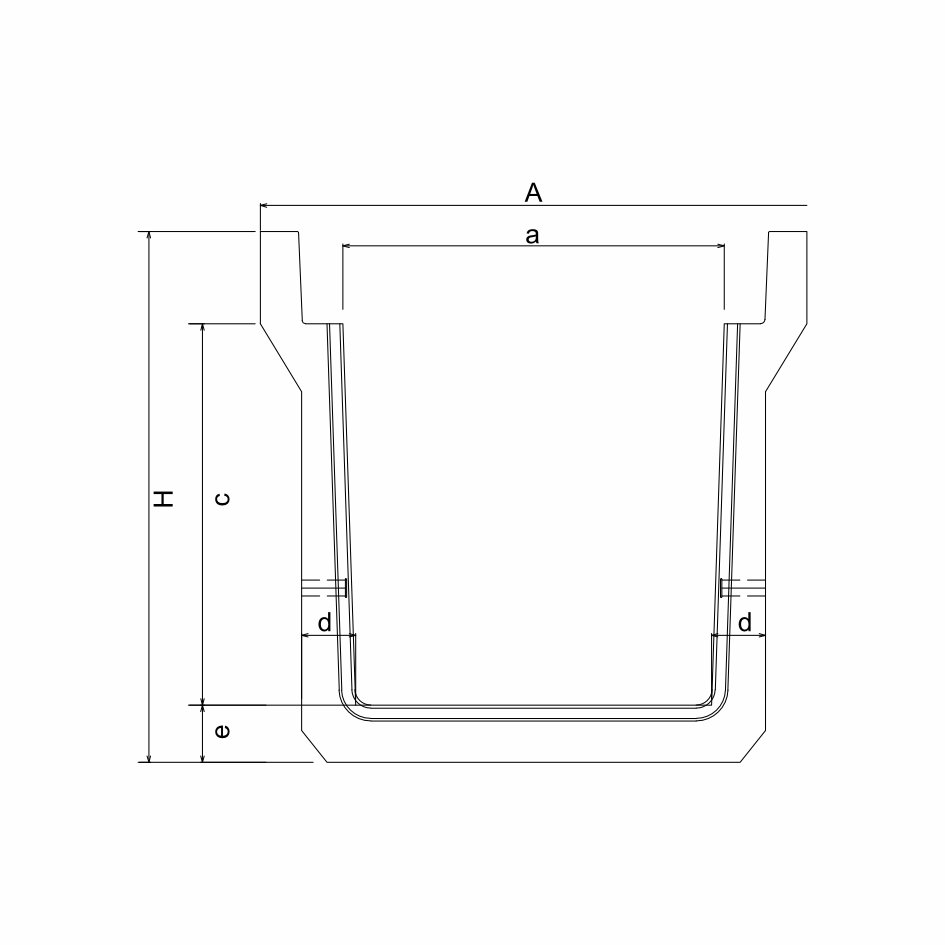

Section
Side View
Product Specification
| Size (mm) | Dimensions of U Shape Drain (mm) T-6 | ||||||
|---|---|---|---|---|---|---|---|
| a x c | L | A | H | a | c | d | e |
| 300 x 300 | 2000 | 440 | 370 | 300 | 300 | 70 | 70 |
| 450 x 450 | 2000 | 610 | 520 | 450 | 450 | 75 | 70 |
| 600 x 600 | 2000 | 730 | 685 | 600 | 600 | 85 | 85 |
| 750 x 750 | 2000 | 890 | 845 | 750 | 750 | 95 | 95 |
| 900 x 900 | 2000 | 1070 | 1015 | 900 | 900 | 115 | 115 |
| Drain Size (mm) | Dimensions of Cover (mm) | ||
|---|---|---|---|
| A’ x B’ | A’ | B’ | H |
| 300 x 300 | 500 | 440 | 60 |
| 450 x 450 | 500 | 610 | 80 |
| 600 x 600 | 500 | 720 | 80 |
| 750 x 750 | 500 | 890 | 90 |
| 900 x 900 | 500 | 1060 | 100 |
