Box Culvert

A compact precast drainage solution designed for pedestrian areas and residential infrastructure. Combines the durability of precast concrete with efficient installation, making it ideal for small drainage and utility applications.

Download Brochure
Box Culvert

Application

Storm water drains, power cable ducts, utility corridors, road crossings and residential infrastructure.

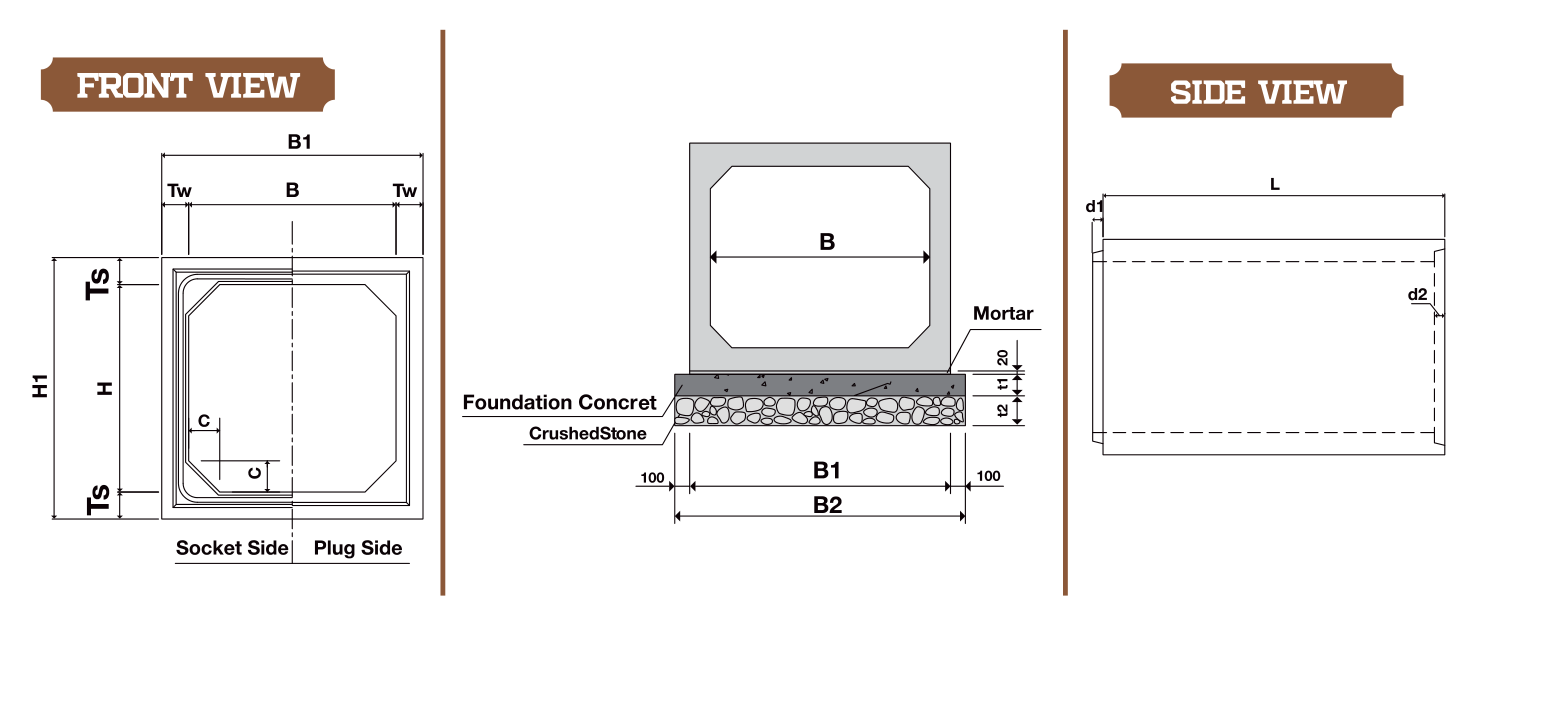

Front & Side View Technical Drawing

Front & Side View Technical Drawing

Product Specification

Size (mm) Dimensions of Precast Box Culvert (Custom sizes available upon request)
B X H (mm) B B1 H H1 L TS TW C d1 d2
300 x 300 300 416 300 475 2000 95/80 55 C30 / R50 - -
500 x 500 500 680 500 740 2000 120 90 50 - -
600 x 600 600 775 600 860 2000 130 80 C50 / R80 - -
800 x 800 800 1060 800 1060 2000 130 130 100 60 60
600 X 1000 600 860 1000 1260 2000 130 130 150 60 60
900 X 1000 900 1160 1000 1260 2000 130 130 150 60 60
1000 X 1000 1000 1260 1000 1260 2000 130 130 150 60 60
1200 X 1000 1200 1460 1000 1260 2000 130 130 150 60 60
1000 X 600 1000 1260 600 860 2000 130 130 150 60 60
800 X 1400 800 1060 1400 1660 2000 130 130 150 60 60
900 X 1400 900 1160 1400 1660 2000 130 130 150 60 60
1000 X 1400 1000 1260 1400 1660 2000 130 130 150 60 60
1200 X 1400 1200 1460 1400 1660 2000 130 130 150 60 60
1300 X 1400 1300 1560 1400 1700 2000 150 130 150 60 60
1500 X 1400 1500 1760 1400 1700 2000 150 130 150 60 60
1400 X 1000 1400 1660 1000 1260 2000 130 130 150 60 60
1400 X1200 1400 1660 1200 1460 2000 130 130 150 60 60
2000 X 1200 2000 2320 1200 1560 2000 180 160 200 80 80
2000 X 1500 2000 2320 1500 1860 2000 180 160 200 80 80
2000 X 1800 2000 2320 1800 2160 2000 180 160 200 80 80
2000 X 2000 2000 2320 2000 2360 2000 180 160 200 80 80
2500 X 1500 2500 2900 1500 1940 1500 220 200 200 80 80
2500 X 1800 2500 2900 1800 2240 1500 220 200 200 80 80
2500 X 2000 2500 2900 2000 2440 1500 220 200 200 80 80
2500 X 2500 2500 2900 2500 2940 1500 220 200 200 80 80
