Reinforced Concrete Pipes
Somnath Precast Reinforced Concrete Pipes are engineered for maximum strength and hydraulic efficiency. Conforming to stringent quality parameters, they provide a reliable, leak-proof solution for stormwater drainage, sewerage systems, and heavy-duty industrial culverts.
Download Brochure
Application
Widely used in stormwater drainage, culverts, cross drainage works, and municipal sewer lines.

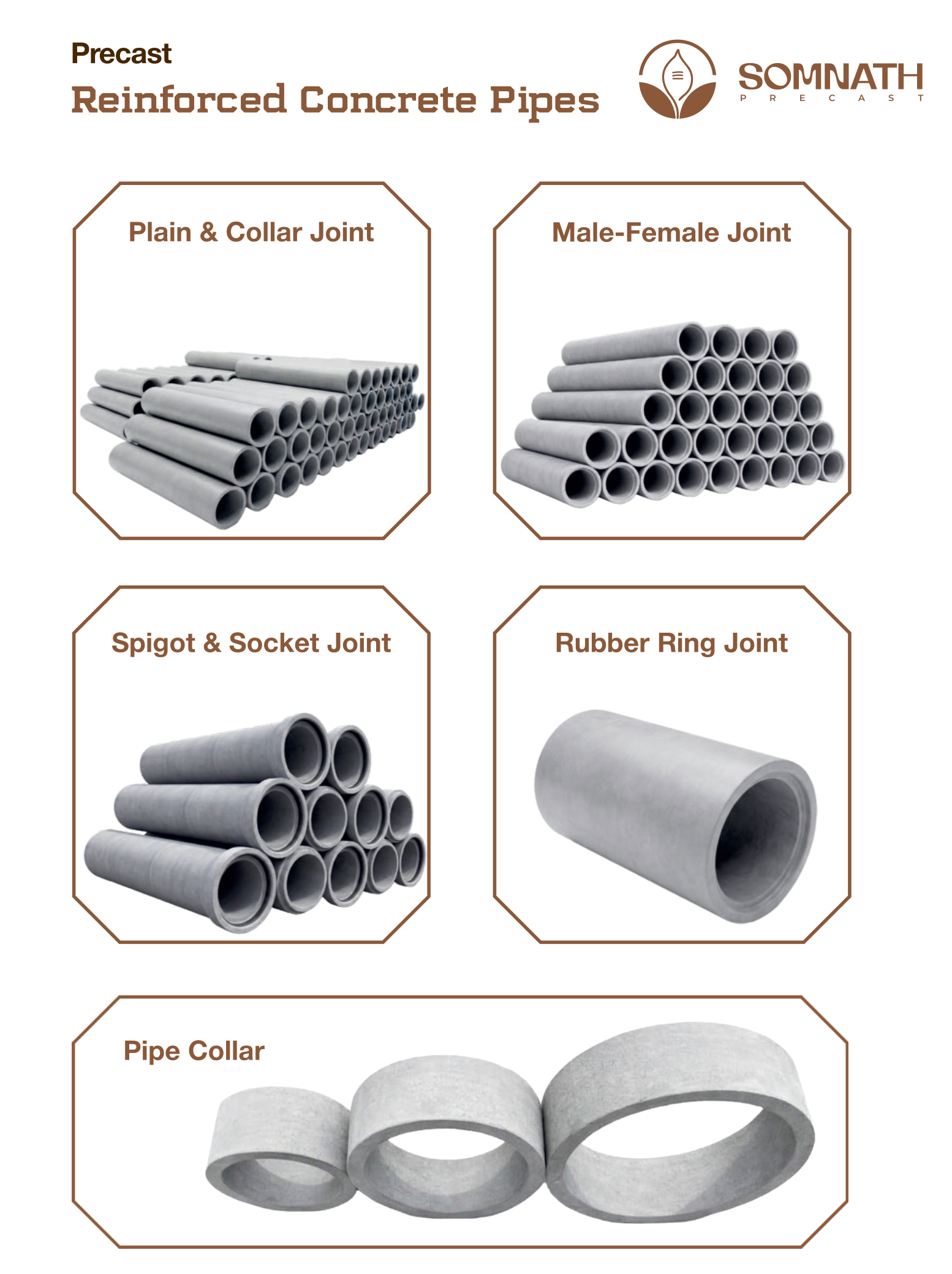

Joint Configurations & Collars
Available Manufacturing Sizes
| Size (mm) | Class NP2, NP3, NP4 & Joint Types | ||||||
|---|---|---|---|---|---|---|---|
| Pipe Dia (mm) | Class NP2 | Class NP3 | Class NP4 | M/F Joint | RR Joint | S&S Joint | Collar Joint |
| 150 | Horizontal | Horizontal | Horizontal | - | - | ✔ | ✔ |
| 200 | - | Horizontal | Horizontal | - | - | ✔ | - |
| 225 | Horizontal | - | - | - | - | - | ✔ |
| 250 | - | Horizontal | Horizontal | - | - | ✔ | - |
| 300 | Horizontal | Horizontal | Horizontal | ✔ | - | ✔ | ✔ |
| 400 | - | Horizontal | Horizontal | - | - | ✔ | - |
| 450 | Horizontal | Horiz. & Vert. | Horiz. & Vert. | ✔ | - | ✔ | ✔ |
| 500 | - | Horizontal | Horizontal | - | - | ✔ | - |
| 600 | Horizontal | Horiz. & Vert. | Horiz. & Vert. | ✔ | - | ✔ | ✔ |
| 700 | - | Horizontal | Horizontal | - | - | ✔ | - |
| 900 | Horizontal | Horiz. & Vert. | Horiz. & Vert. | ✔ | - | ✔ | ✔ |
| 1000 | - | Horiz. & Vert. | Horiz. & Vert. | - | ✔ | - | - |
| 1200 | Horizontal | Horiz. & Vert. | Horiz. & Vert. | ✔ | ✔ | ✔ | ✔ |
| 1400 | - | Horiz. & Vert. | Horiz. & Vert. | - | ✔ | - | - |
| 1600 | - | Horiz. & Vert. | Horiz. & Vert. | - | ✔ | - | - |
| 1800 | - | Horiz. & Vert. | Horiz. & Vert. | - | ✔ | - | - |
| 2000 | - | Horiz. & Vert. | Vertical | - | ✔ | - | - |
| 2200 | - | Vertical | Vertical | - | ✔ | - | - |
