Precast Earth Retaining Wall
L-shaped retaining wall units designed for maximum earth retention and slope stability. These reinforced precast sections allow for the rapid construction of high-strength vertical walls without the need for complex on-site shuttering.
Download Brochure
Application
For the prevention of the soil erosion. To retain the soil nearby, Culvert, underpass, bridge, etc. To provide the stability in sloped soil. Landscaping.

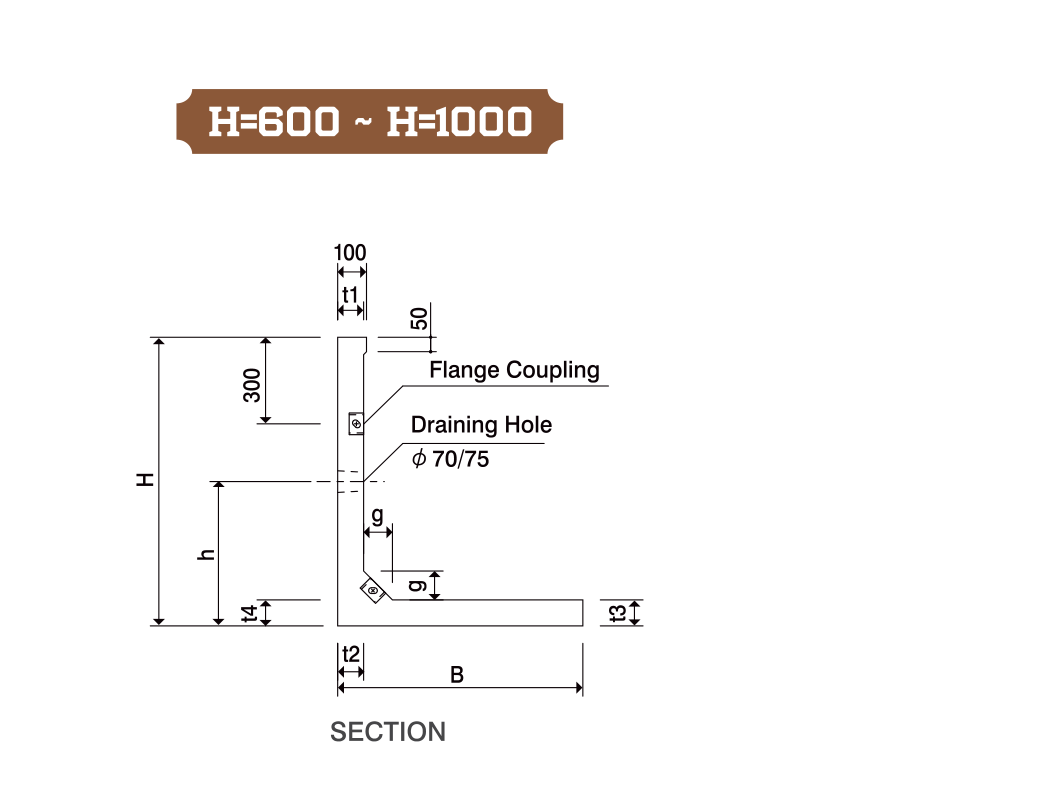

Section Detail (H=600 ~ H=1000)

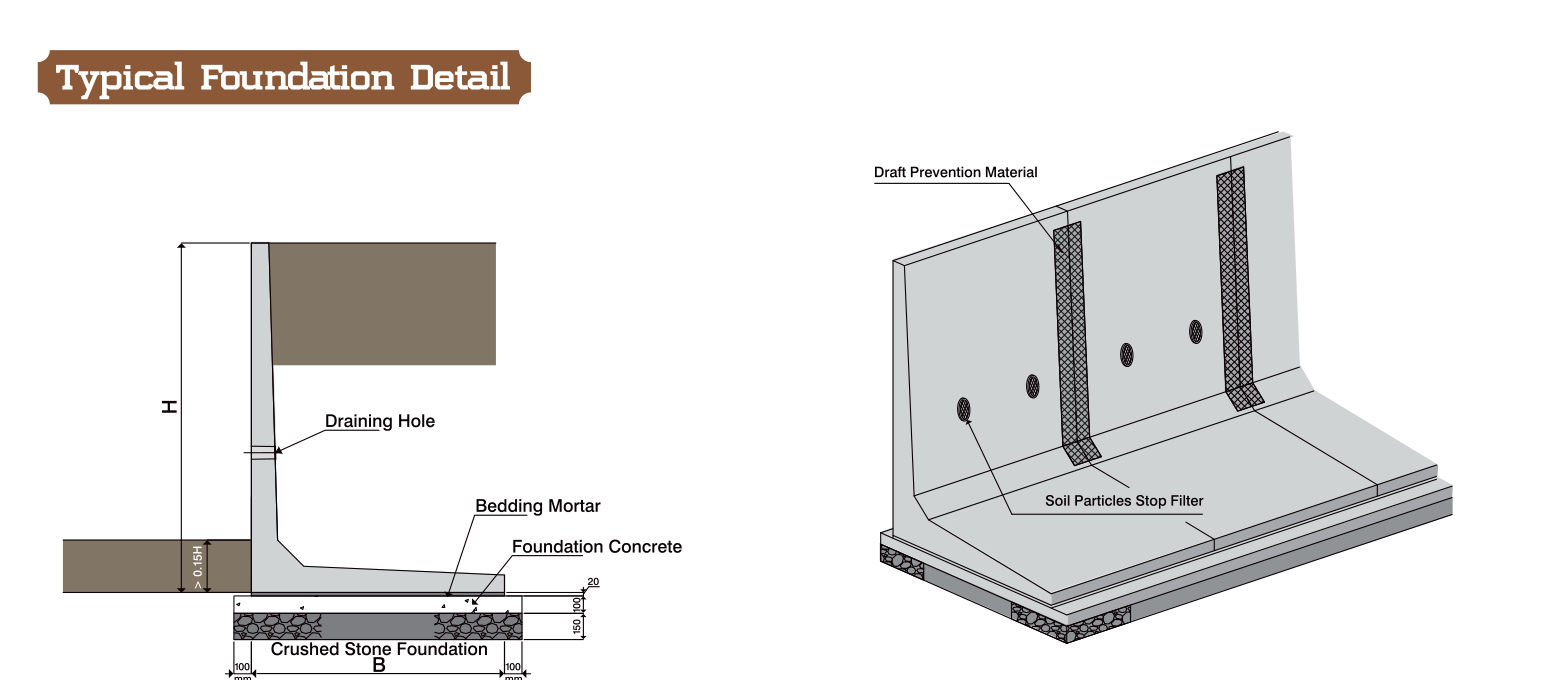

Typical Foundation Detail
Product Specification
| Size (mm) | Dimensions (mm) - Custom sizes available upon request | |||||||
|---|---|---|---|---|---|---|---|---|
| Height (mm) | B | t1 | t2 | t3 | t4 | g | h | L |
| 600 | 680 | 70 | 70 | 70 | 70 | 100 | 300 | 2000 |
| 800 | 760 | 80 | 80 | 80 | 80 | 100 | 400 | 2000 |
| 1000 | 850 | 90 | 90 | 90 | 90 | 100 | 500 | 2000 |
| 1200 | 970 | 100 | 100 | 100 | 100 | 120 | 600 | 2000 |
| 1800 | 1330 | 100 | 140 | 100 | 140 | 150 | 800 | 2000 |
| 2000 | 1450 | 100 | 140 | 100 | 140 | 150 | 800 | 2000 |
| 2250 | 1600 | 100 | 170 | 100 | 170 | 180 | 900 | 2000 |
| 2500 | 1750 | 100 | 170 | 100 | 170 | 180 | 900 | 2000 |
